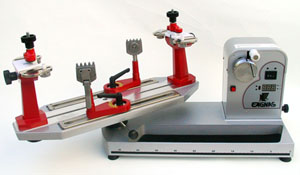

Eagnas Electronic Racquet Stringing Machine

Model Number: Hyper 220E

Specifications:

• Two-point, hold-down mounting system
• Constant pull tensioning system
• All-metal diamond-coated, rotational string gripper
• 10-90 pound tension range in both pound and kilogram scales; 4-40 kilogram tension range in kilogram scale
• 360 degree swivel turntable with brake
• Two diamond-coated, heavy-duty dual-action thumb-adjustable stainless steel swivel clamp (fixed clamps): 2 PN-1002 tennis clamps
• Handle any diagonal stringing (fan patterned frames)

Features:

• Patented electronic tension head (patent no. 139390) with LED digital display
• Constant pull tensioning system eliminates any tension loss during pulling process.
• Two-point mounting system with 2 extra support points at head and throat mounting stocks: provide 4 extra supports from outside or inside (an importer calls six-point inside mounting systems.)
• Frame retainers protect against scratching the frames finish.
• Dual-action swivel clamps can move in any direction up and down; and can handle all types of racquets without extra accessories.
• 2 diamond-coated, thumb-adjustable stainless steel swivel clamps (PN-1002). Stringing has never been as easy and efficient as it is now with the Eagnas thumb-adjustable clamp.
• All-metal ConeLock swivel clamp bases:
  provide smooth operation.
• 360 degree racquet rotation
• Metal machine base with padded tool tray and level-adjustable pads
• Tools: 1 6mm Allen wrench, 1 5mm Allen wrench, 1 2.5mm Allen wrench
• Free stringing tools: 1 NP-500 needle nose pliers, 1 BS-809 tennis awl and 1 PN-3092 string mover
• User's manual
• Free illustrated stringing tutorial guide: show you how to string racquets step by step
• String all racquets: tennis, oversized tennis, widebodies, longbodies, fan patterned, squash, racquetball, and badminton.
• 1 year warranty for all the electronic parts
• 2 years warranty for all the mechanical parts

Options:

Throatless adaptor Easier to mount the throatless racquets.

Hyper 220E major component list:

Model	Eagnas: Hyper 220E
Six-point, hold-down mounting system	Yes
Inside 6-point supports	Yes
Outside 6-point supports	Yes
2 tennis swivel clamps	Stainless steel thumb-adjustable (PN-1002)
2 badminton swivel clamps	No
2 swivel clamp bases	Metal ConeLock
Tension head	DC motor, electronic
Rotatioanl string gripper	Metal, diamond-coated: Much better and easier.
360 degree swivel turntable	Yes
Turntable brake	Screw brake system
Machine base	With tool tray
Stringing tools	1 NP-500 needle nose pliers, 1 BS-809 tennis awl, and 1 PN-3092 string mover
